Aluminum Alloy Stage Truss for Events and Concerts
| Lugar de origen | Jiangsu, China |
|---|---|
| Nombre de la marca | Shizhan |
| Número de modelo | Truss-rt de aluminio |
| Cantidad de orden mínima | 100 |
| Precio | US$52-55 |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Tipo de conexión | Conexión de PIN | Forma | Rectángulo, cuadrado, triángulo, redondo o personalizado |
|---|---|---|---|
| Diseño del marco | Rectangular | Longitud | 1.0-4.0m |
| Material | Aleación de aluminio | Capacidad de carga | 1000 kg |
| Método de ensamblaje | Instalación rápida | Tipo de estructura | Estructura modular |
| Duración de la unidad | los 0.5m, el 1m, los 2m, 3M, los 4m, los 5m o modificado para requisitos particulares | Forma de la sección de la armadura | Cuadrado o redondo |
| Espesor del tubo de truss | 1.5/2/3 mm | Diámetro del tubo de truss | 20 mm, 32 mm, 50 mm |
| Dureza | 16 grados | Espesor del tubo principal | 30*2 mm; 50*3 mm; 50*4 mm; 50*5 mm |
| Espesor de vicio | El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef | ||
| Resaltar | aluminum alloy stage truss,concert lighting truss system,event truss with aluminum alloy |
||
Descripción de producto
Aluminum Outdoor Stage Box Performance Truss
Product Specifications
| Connection Type | Pin Connection |
| Feature | Durable |
| Shape | Rectangle, square, Triangle, round or customized |
| Frame design | Rectangular |
| Product Type | Stage Truss |
| Application | Events, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Length | 1.0-4.0m |
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 1000kg |
| Assembly Method | Quick installation |
| Structure Type | Modular Structure |
| Unit length | 0.5m,1m,2m,3m,4m,5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm,32mm,50mm |
| Hardness | 16 degree |
Technical Details
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm,300*300mm; 350*350mm 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Delivery Time | 10 working days |

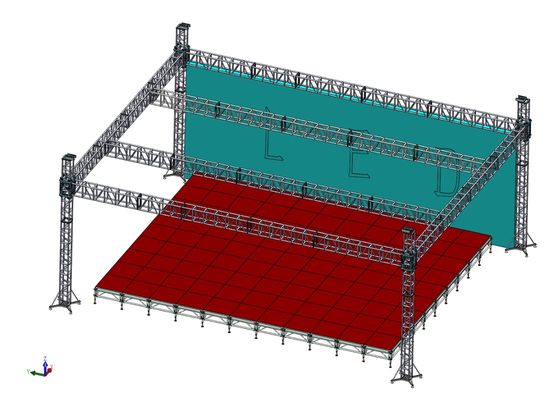

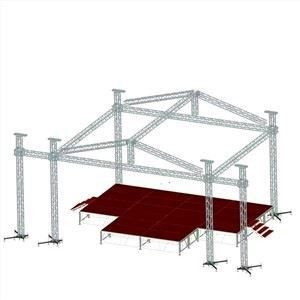

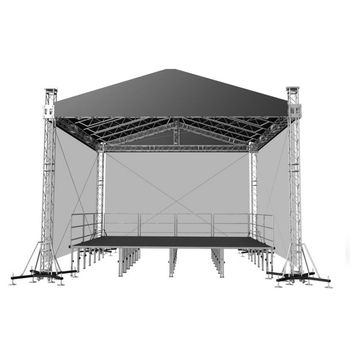

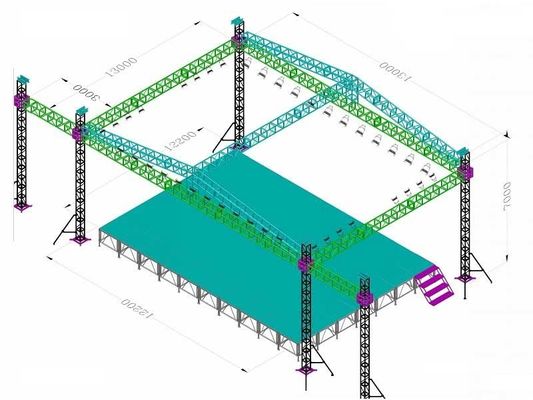

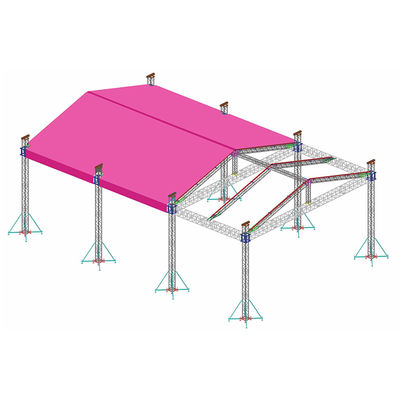

Product Images
Applications
Our aluminum alloy stage truss is a modular system made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for outdoor events with configurable shapes and sizes
- Theatrical productions: Create sets, backdrops, and structures for plays and musicals
- Exhibitions and trade shows: Construct booths and displays for product presentations
- Corporate events: Build stages for product launches, conferences, and award ceremonies
- Sports events: Create structures for race lines, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage manufacturing
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products have TUV/SGS/CE/ISO9001 certifications. We also offer samples for quality checking before batch orders.
What payment methods do you accept?
T/T, Western Union, Trade Assurance, and L/C payments are accepted.
What is your product warranty?
We provide a one-year warranty covering any non-artificial damage with free replacement.
Do you offer custom designs?
Yes, our technical team can provide perfect solutions for your specific project requirements.
