Modular Aluminum Square Roof Truss for Concert Stages 500kg Capacity
| Lugar de origen | Jiangsu, China |
|---|---|
| Nombre de la marca | Shizhan |
| Número de modelo | Truss-rt de aluminio |
| Cantidad de orden mínima | 100 |
| Precio | US$44-46 |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Tipo de conexión | Conexión de PIN | Forma | cuadrado, triángulo, ronda o modificado para requisitos particulares |
|---|---|---|---|
| Diseño del marco | Modular | Longitud | 3M |
| Material | aleación de aluminio 6082-T6 | Capacidad de carga | 500 kg |
| Método de ensamblaje | Instalación rápida | Tipo de estructura | Estructura modular |
| Duración de la unidad | los 0.5m, el 1m, los 2m, 3M, los 4m, los 5m o modificado para requisitos particulares | Forma de la sección de la armadura | Cuadrado o redondo |
| Espesor del tubo de truss | 1.5/2/3 mm | Diámetro del tubo de truss | 20 mm, 32 mm, 50 mm |
| Dureza | 16 grados | Espesor del tubo principal | 30*2 mm; 50*3 mm; 50*4 mm; 50*5 mm |
| Espesor de vicio | El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef | ||
| Resaltar | modular aluminum roof truss,concert stage truss 500kg,aluminum lighting truss square |
||
Descripción de producto

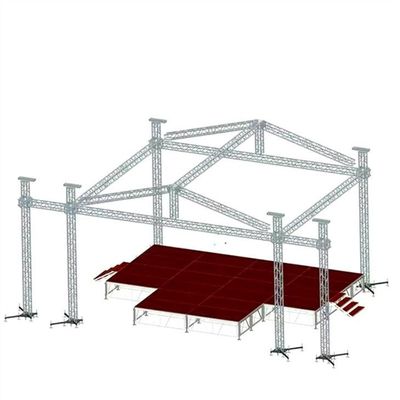

Concert Stage Square Roof Truss
Product Specifications
| Attribute | Value |
|---|---|
| Connection Type | Pin Connection |
| Feature | Quick installation |
| Shape | Square, Triangle, Round or Customized |
| Frame Design | Modular |
| Product Type | Display Truss |
| Application | Exhibitions, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Material | Aluminium, Aluminum Alloy |
| Load-bearing Capacity | 500kg |
| Unit Length | 0.5m, 1m, 2m, 3m, 4m, 5m or Customized |
| Color | Silver, Black or Customized |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light Duty Truss | 200*200mm; 250*250mm |
| Medium Duty Truss | 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy Duty Truss | 520*760mm; 600*760mm; 600*1000mm |
| Main Tube Thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Length Options | 0.5m/1m/1.5m/2m up to 4m or custom size |
| Truss Type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color Options | Silver, black, blue, green or custom |
| Delivery Time | 10 working days |
Applications
Our aluminum alloy stage truss system is a versatile modular solution for various events and applications:
- Concerts and festivals: Ideal for building stages with quick assembly and disassembly
- Theatrical productions: Perfect for sets, backdrops, and stage structures
- Exhibitions and trade shows: Excellent for booth construction and display frameworks
- Corporate events: Suitable for product launches, conferences, and award ceremonies
- Sports events: Used for race structures, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage manufacturing
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- In-house aluminum profile production for quality control
- Strict QC process with installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products have TUV/SGS/CE/ISO9001 certifications. We can provide samples for quality evaluation before bulk orders.
What payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your product warranty?
We offer a 1-year warranty covering manufacturing defects (excluding artificial damage).
Do you offer custom designs?
Yes, our technical team can provide customized solutions for your specific project requirements.
