Aluminum Stage Truss System 300kg Load Capacity Quick Installation
| Lugar de origen | Jiangsu, China |
|---|---|
| Nombre de la marca | Shizhan |
| Número de modelo | Truss-rt de aluminio |
| Cantidad de orden mínima | 30 |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Tipo de conexión | Conexión de tornillo, conexión de alfiler, conexión rápida | Forma | Rectángulo, cuadrado, círculo, personalizado, cuadrado, triángulo, redondo o personalizado |
|---|---|---|---|
| Diseño del marco | Modular, rectangular, cuadrado | Longitud | 1,0-5,0 m |
| Material | Aleación de aluminio | Capacidad de carga | 300 kg |
| Método de ensamblaje | Instalación rápida | Tipo de estructura | Estructura modular |
| Duración de la unidad | 0,5 m, 1 m, 2 m, 3 m, 4 m, 5 m o personalizado | Forma de la sección de la armadura | Cuadrado o redondo |
| Espesor del tubo de truss | 1.5/2/3 mm | Diámetro del tubo de truss | 20 mm, 32 mm, 50 mm |
| Dureza | 16 grados | Espesor del tubo principal | 30*2 mm; 50*3 mm; 50*4 mm; 50*5 mm |
| Espesor de vicio | El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef | ||
| Resaltar | aluminum stage truss system 300kg load,quick installation aluminum lighting truss,aluminium truss system with high capacity |
||
Descripción de producto

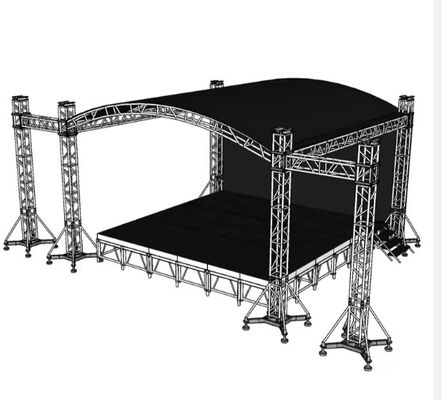

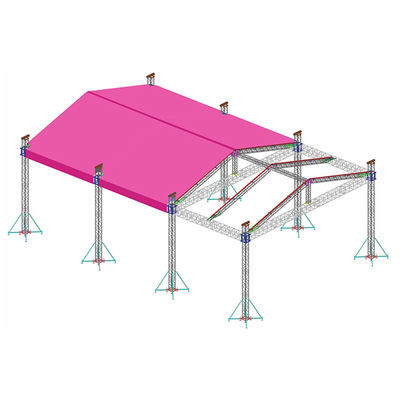

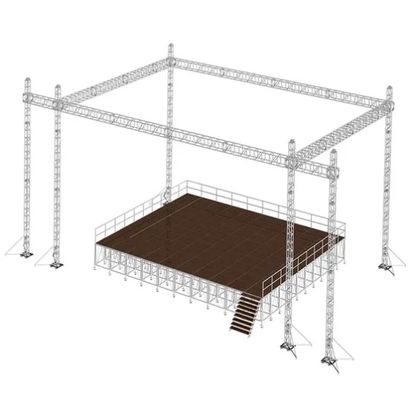

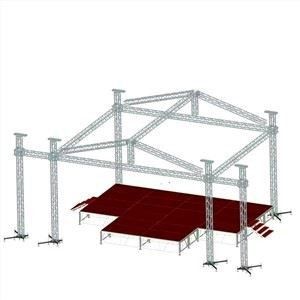

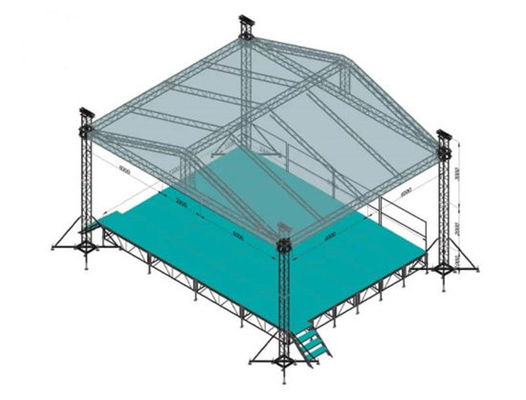

Aluminium Stage Lighting Truss Roof System
Product Overview
Our aluminum stage lighting truss roof system is a professional-grade solution designed for concerts, exhibitions, and outdoor events. The modular design offers versatility while maintaining structural integrity with a 300kg load-bearing capacity.
Key Specifications
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 300Kg |
| Length Options | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Truss Types | Ladder, triangular, square, arch, circle |
| Color Options | Silver, black, blue, green or customized |
| Delivery Time | 10 working days |
Technical Details
| Truss Type | Dimensions |
|---|---|
| Light Duty Truss | 200×200mm; 250×250mm |
| Medium Duty Truss | 290×290mm to 400×600mm |
| Heavy Duty Truss | 520×760mm; 600×760mm; 600×1000mm |
| Main Tube Thickness | 30×2mm to 50×5mm |
| Vice Tube Thickness | 18×2mm to 25×2.5mm |
Product Features
- Weather-resistant design for outdoor use in all seasons
- Modular structure for quick installation and customization
- Multiple connection types: screw, pin, and quick connection
- Portable, durable, and foldable design
- Available in rectangular, square, circular, and custom shapes
- Roof top cover included for weather protection
Applications
Our aluminum truss system is ideal for:
- Concerts and music festivals
- Trade shows and exhibitions
- Outdoor events and performances
- DJ setups and band performances
- New product launches and fashion shows
- Booth stand construction
Why Choose Our Aluminum Truss Systems?
- TUV, SGS, CE Certified products
- 15 years of industry experience
- 35,000 m² production facility ensuring timely delivery
- Professional engineering team for customized solutions
- In-house aluminum profile production for quality control
- Rigorous quality inspection process
- Installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products are TUV/SGS/CE/ISO9001 certified. We offer sample orders for quality verification before bulk purchases.
What payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your product warranty?
We provide a one-year warranty covering any non-artificial damage with free replacement parts.
Do you offer custom designs?
Yes, our technical team can create customized solutions for your specific project requirements.
